| Type | QSG630R6(A) | QSG1000R6(A) | QSG1300R6(A) |
| Working Width | 20-630mm | 20-1000mm | 20-1300mm |
| Working Thickness | 2-110mm | 2-110mm | 2-110mm |
| The shortest processing Length | ≥400mm | ≥400mm | ≥400mm |
| Feed Speed | 2.5-12.5m/min | 2.5-12.5m/min | 2.5-12.5m/min |
| Scrubbing Brush Motor Power | 2*1.1kw | 2*1.1kw | 2*1.1kw |
| Dis Brush Motor Power | 1.5kw | 1.5kw | 1.5kw |
| Roller Brush Motor Power | 2*2.2kw | 2*2.2kw | 2*2.2kw |
| Delivery Motor Power | 2.2kw | 2.2kw | 2.2kw |
| Sand Lifting Motor Power Alone | 4*0.25kw | 4*0.25kw | 4*0.25kw |
| Total Motor Power | 12.85kw | 12.85kw | 12.85kw |
| Swing Scope | 30/50mm | 30/50mm | 30/50mm |
| Working Air Pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
| Speed of Sucked Air | 8200m3/h | 8200m3/h | 8200m3/h |
| Vacuuning Mouth Diameter | 150mm*5个 | 150mm*5个 | 150mm*5个 |
| Overall Dimension | 3550*1580*1780mm | 3550*1950*1800mm | 3600*2250*1800mm |
Advantage:
The bottom surface heterotype sander is our company's newly developed patent product,to make solid wood furniture have pour natural angle effect with high efficiency and low use cost.Being able to make chamfering polishing on irregular furniture parts,also primer for grinding on the components of UV,PU,NC,can also be used with other models'wring.Being able to make positive and negative double treatment for the machined parts,greatly improving the production efficiency.Unique feeding way can grind uneven workpieces,truly realize the special-shaped workpiece.
The disc gauze strip can be replaced more simply.
The processing height of each axis can be electrically controlled based on different Processing requirements.

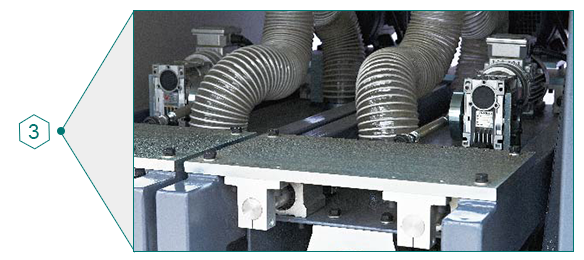

Every axis has independent processing space and the dust removal system,which can greatly improve the production environment
Effectively eliminate grinding trace.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping：
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1.Why does sanding machine application?
----Sanding machine application:solid wood panels,wood floor,wood board,plywood,chipboard,laminate t,the surface of groove,joinery board,multilayer board,integrated timber,wooden doors,wooden windows,arts and crafts,and glass steel.
2,What size of sanding machine is right for me?
---Max working width of sanding machine:400mm,630mm, 1000mm, 1300mm,1600mm.
---Min working length of sanding machine: 500mm.
---Thickness:3 to 110mm
Considering your own usage, you can know which size sanding machine you need. Or pls kindly let me know your workpiece size,we will recommend to you.
3,After knowing the size, then which model is right for me?
---You could choose right model sanding machine in our alibaba store,or please kindly let me know your workpiece's size, then we could recommend you right model with best price.
4, After knowing the right model, then what's price?
---Different model with different price.You could reference price top,finally price depends on our discuss result.
5, What's your warranty?
---In 12 months.
6, What's your lead time?
---In 15 to 30 working days.
7, What's your delivery term?
---FOB Qingdao China usually, also can be CIF/DDU/DDP to your side if you need.
8, What's your payment term?
---30% T/T deposit, balance T/T payable before delivery after inspection.
9, What's the HS code of sanding machine?
---In China it is 8467291000
 |  |
If you have any requirement or question, please fill out the form below that we will reply you within 24 hours.
