1.Max .width of workpiece | 2450mm |
2.Max.distance of two horizontal boring position | 640mm |
3.Min.distance of vertical drilling group | 128mm |
4.Max.thickness of workpiece | 78mm |
5.Max.depth of horizontal boring head | 40mm |
6.Max.depth of vertical boring spindles head | 70mm |
7.Rotating speed of boring spindles | 2,800rpm(50HZ) |
8.Vertical boring power | 1.1KW/1.5KW |
9.Horizontal boring power | 1.5KW |
10.Feeding motor power | ___ |
11.Feed speed | ___ |
12.Working Pressure | 0.6-0.8MPa |
13.Dimension of machine | 3750*2500*1760 |
14.Packing dimension | 3900*1500*1800 |
Advantage:
1. Drilling Milling machines suitable for kitchen cabinet, wardrobes, office furnitures etc. holes boring work. Our 4 rows boring machine is very good for mass production and big panel processing effectively.
2. Drills are joined in a high speed, easy operation.
3. Main body is made by special steel which is dealt with high temperature annealin-g.
4. high speed motors are available to drill the precise holes.
5. Speed automatic feeding device with smooth operation and high effciency.
6. Excellent PLC control systems are applied which make the machine full of power and has a low failure rate.

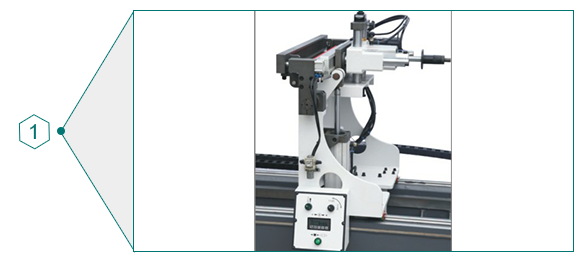

Horizontal boring of right-row rotation.
Light.

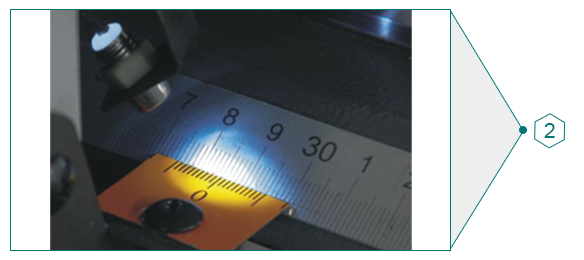

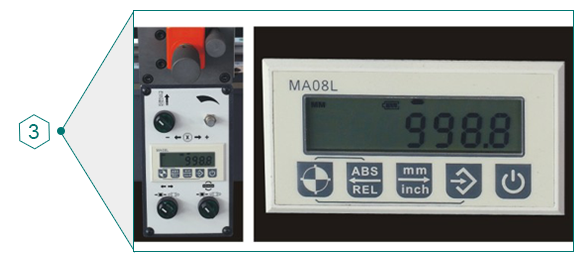

Precise.Drilling strike is accurately displayed on digital LED display
Rotation Field.

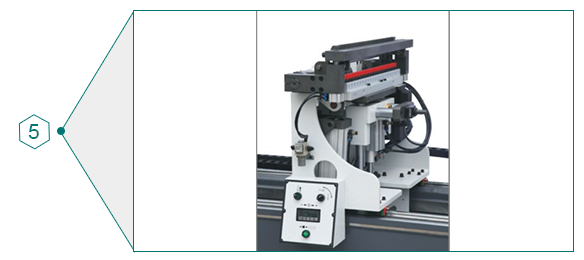

Vertical boring of right row rotation,
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1, what's the advantage of you?
more than 12 years woodworking machine making and serve experience. 5 years export and import experience.
2, What's your warranty of your products?
its warranty is 1 year under nomal used
3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.
4, What's your payment term?
30% advance payment and the balance payment should be paid before delivery but after inspection.
If you have any requirement or question, please fill out the form below that we will reply you within 24 hours.
