painting machine
How to Use a Paint Spray Machine. A spray paint machine can make painting or staining easier and faster, especially if you have large areas or uneven surfaces to cover

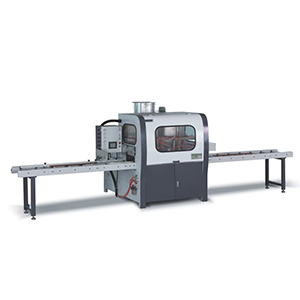

Name | Spray painting machine HFME40 |
Dimensions | 6.4*2*1.8m |
Weight | 1.5T |
Max processing length | 420mm |
Max processing width | 10-400mm |
Max processing thickness | 5-80mm |
Feeding speed | 5-25m/min |
Paint dosage | 60-200g/m2 |
Air flow | 2400L/min |
Power supply | 380v 50HZ(could choose as your demands,price also different) |
Painting Machine
1.PLC controller is provided to control each spray gun’s switch independently in order to save paint.
2.Automatic identification infrared sensor is provided to test the product’s length and width.PLC adjusts spray gun’s position automatically when the product’s length and width are changeable.

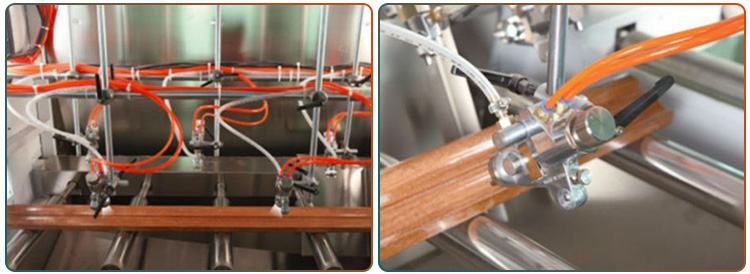

3.The automatic spray gun is imported from Japan originally-lwata or Meiji spray gun.The spray gun’s paint quantity and angles can be adjusted in advance. Each spray gun is control separately.

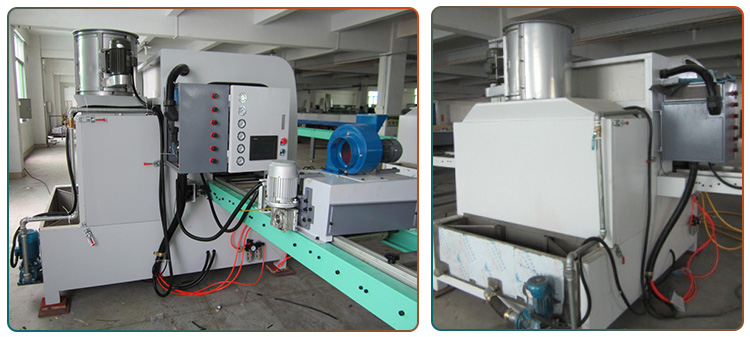

4.Waste gas purification system is provided to release the waste gas created during the painting,which can protect the environment from pollution in a large extent.
5.Stable paint supply is offered by a set high- capacity diaphragm pimp and stabilizer to make the painting work more stable and paint change more convenience.

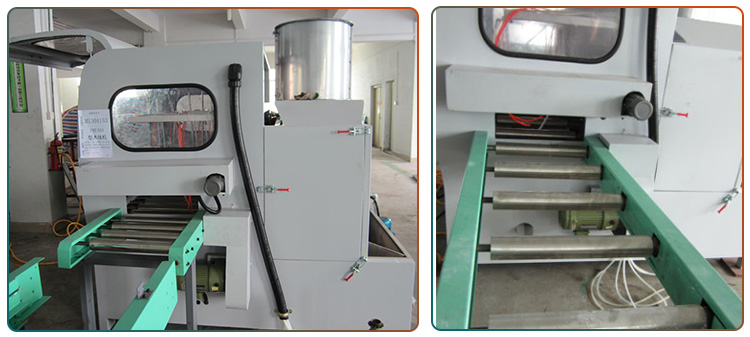

6.The conveyor’s speed can be frequency controlled to meet different painting requirements.
7.The paint recovery device can recycle 70%-80% wasted painting in order to improve the paint’s use ratio.
 |  |
