Product name | vacuum membrane press machine |
Exterior size | 10030mm×2230 mm×2150mm |
Working plate size | 2580mm×1270mm(inner size) |
Maximum height of the work piece | 50mm (including back board) |
Rating working pressure | positive pressure≤0.6Mpa negative pressure≥-0.095Mpa |
second loading pressure | 0.4Mpa |
General Power | 55kw |
Actual power consumption | about11kW |
Weight | 12.7T |
Advantage:
1. 6 pcs of steel plates in 25mm machined down without deformation. And installed in power point. Provide strong structure.
2. working table running controlled by DELTA frequency transformer; starting in low speed, running fast and end in low, which prevent the work pieces displacement.

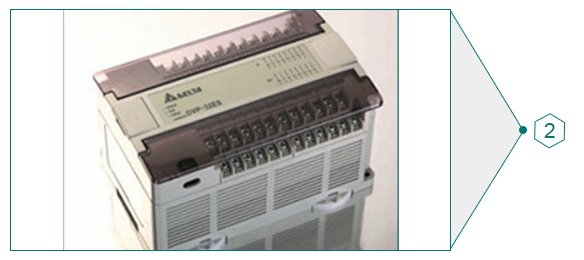

3. DELTA PLC controller used for operation system, and touch-screen automatically convenient to control.

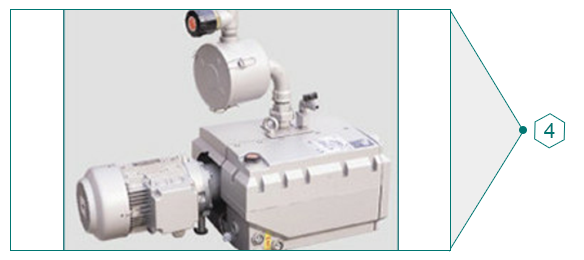

4. Vacuum pump Made in China with Germany technology straight-through theory, good working, and easy maintenance. Also can choose German BECKER original pump
5. Take SCHNEIDER 0910、2510 contactor, Weidder miller intermediate relay , and DELTA DVP-32ESO.
6.With theory of plug-in mounting, Taiwan COMPASS hydraulic system run promptly with large capacity, and seldom break down, use 5s to load hydraulic pressure which improve working efficiency.
“Schneider”0910、2510 contactor, “Weider miller” intermediate relay , and “DELTA” DVP-32ESO
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1. Can we visit your factory?
We do welcome our new and regular friends come here to have a visit. Besides, we would send you.
2.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.
3.How about your after-sales service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
4. Do you have any warranty?
Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.
5. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
6. What's your payment term?
30% advance payment and the balance payment should be paid before delivery but after inspection.
If you have any requirement or question, please fill out the form below that we will reply you within 24 hours.
