Wood Pallet Making Machine

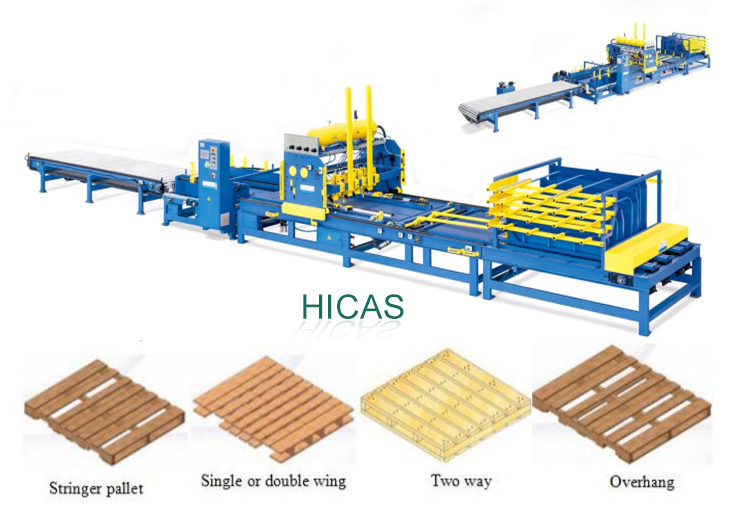

    HICAS(Saifan) automatic stringer pallet nailing machine is a robust and highly diverse pallet nailing system capable of building 850 pallets per day

Depending on the model type the machine will accommodate pallet sizes ranging from 800 x 800 to 1500 x 1500 mm. The simplistic open deck design allows for easy loading of raw materials into the jig.The flexibility of the pallet clamping system allows for easy change over accommodating pallet configurations from 3 to 4 stringer pallets design.The pallet clamping system squarely secures the boards and precisely positions them for the nailing process.

     To eliminate builder fatigue the Saifan Pallet Nailing Machine operates with push button controls allowing the pallet assembly to travel through the pneumatic nailing tools that fastens both the top & bottom deck boards’ simultaneously eliminating the need to turn over the pallet.Also may come with automatic pallet stacker and optional gravity or powered out-feed conveyor allowing the pallet to be stacked to the required height making it the most valuable machine for any pallet production.
