Model | HC600T |
Total pressure | 6000KN |
Working layer | 15 |
Max.pre.int.of valid working width | 16.2kgf/cm2 |
Platen No&size | 16-2700*1370*42mm |
Opening | 70mm |
Cylinder No&diameter | 1-φ190mm,4-φ240mm |
Heating way | The user prepare the boiler |
Hot platen open way | Automatically, threetimes release pressure |
Installation power | 15.75KW |
Closing speed | 65mm/s |
Advantage:
1.the most advanced hydraulic pumping system
2.simple operation, double in-and-out.
3. PLC control,adopt touch screen operation,can easily set the time and pressure,with a password set.

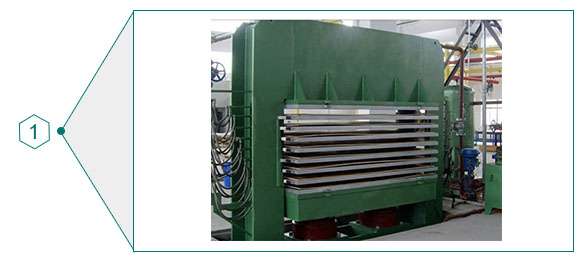

4. The semi-automatic hot press machine contains following parts, such as trolley, top petrol, discharge shelf, cabinet, hydraulic pressure station, tools and so on.
Multi-layer press users can choose according to their own process with a synchronizer or without synchronizer, mainly used in plywood, eco-board, blockboard and other wood-based panels.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1.Q: Are you trading company or manufacturer ?
A: We are factory.
2.Q: How long is your delivery time?
A: Generally it is 25-30 days if the goods are in stock. or it is 35-45 days if the goods are not in stock, it is according to quantity.
3.Q: Are you responsible for the installation?
A: Yes, we will arrange professional engineers to install, debug and teach you how to use
4.Q: How long did you guarantee?
A: One Year, there are any quality problems at any time to contact us
If you have any requirement or question, please fill out the form below that we will reply you within 24 hours.
