Model | BY214×8/12(3) H1RC | Model | BY214×8/12(3) H1RC |
Total pressure | 1200kN | Working layer | 3 layers |
Platen No& size | 4~2500×1300×42mm | Opening | 120mm |
Specific pressure | 3.7kgf/cm2 | Rated pressure | 27Mpa |
Cylinder No& diameter | 8~φ85mm | Cylinder stroke | 360mm |
Closing speed | 30mm/s | Installation power | 4+0.75+48kW |
Heating way | Electric heated with thermic oil | Power | 3PE 380V 50Hz |
Platen open way | Automatically | The max temperature | 120℃ |
Overall size | 3700×1710×2200mm | Gross weight | About 7500kg |
Advantage:
1. 120T 3 layer Woodworking Hot Press Machine use Germany Hawe Valve.
2. Schneider Electrical parts
3. Omron PLC.
4. Solide drilled holes steel plate
5. All ready-to-ship machines inspected by overseas dept. staff independently with detail photo and video to customers. We are trying all the best to insure your worry-free on both purchasing and running of all our machines.

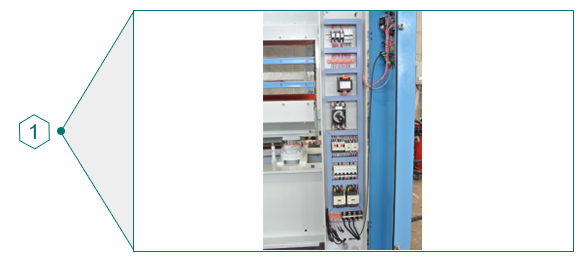

Omron or schneider main electric components,it is stable and durable.
Pistion mode for cylinder,Grind ,plate hard chromium on the surface and polish piston.

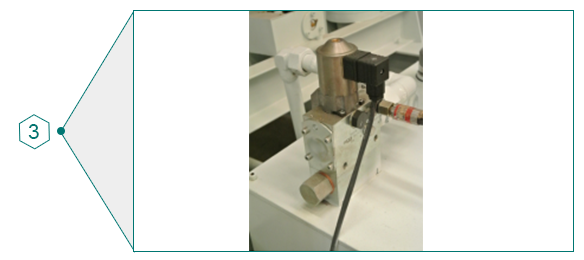

Hawe value from German for auto-open hydraulic value,high holding pressure,reliable performance,less human factors.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
If you have any requirement or question, please fill out the form below that we will reply you within 24 hours.
