straight-line edge banding
High-end automatic edge banding machine, every edgebanding machine from the factory, is tested by our multi-work.
Model | HC468JAS |
Electrical lift | Yes |
Motor power | 16.5kw |
Overall dimension | 7200*760*1600mm |
Feeding speed | 0-23m/min |
Edge tape width | 10-65mm |
Edge tape thickness | 0.4-3mm |
Panel thickness | 9-60mm |
Panel width | ≥60mm |
Working pressure | 0.7mpa |

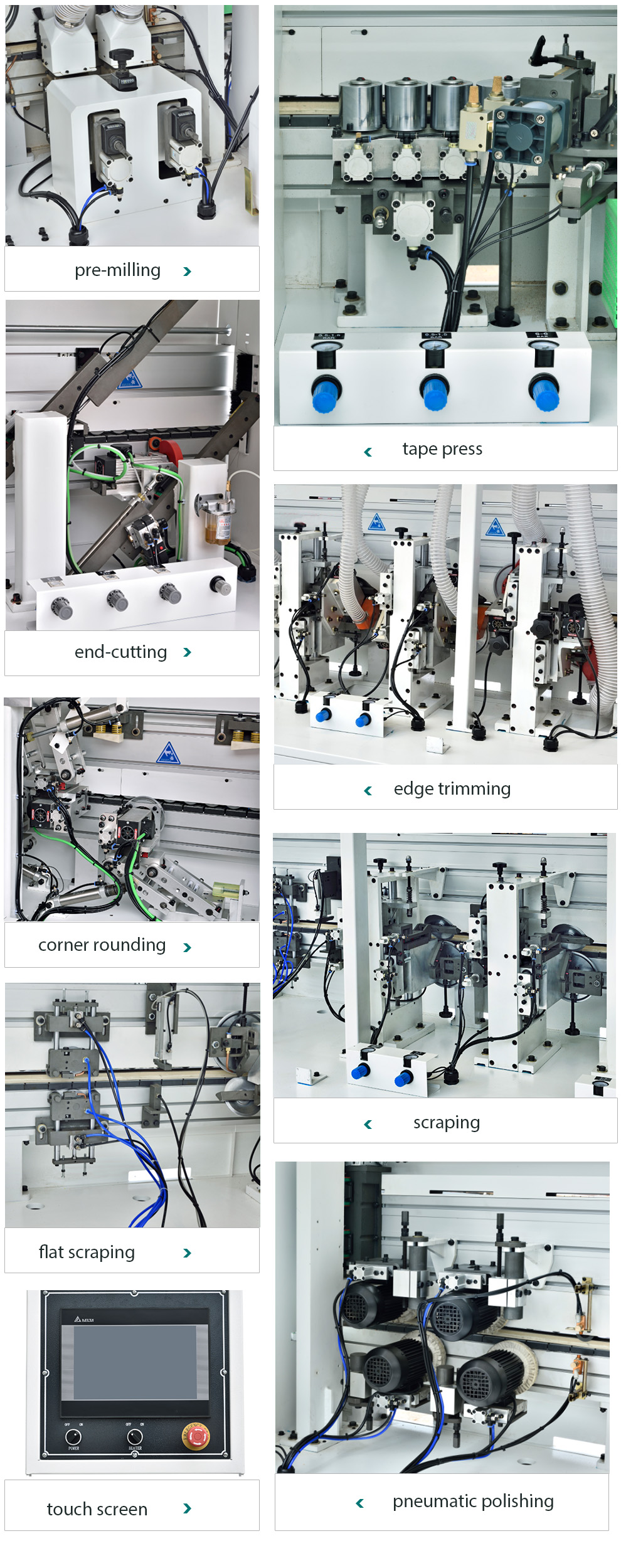

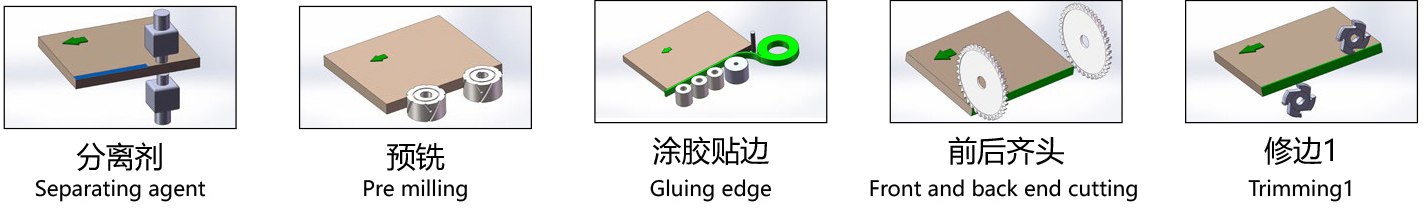

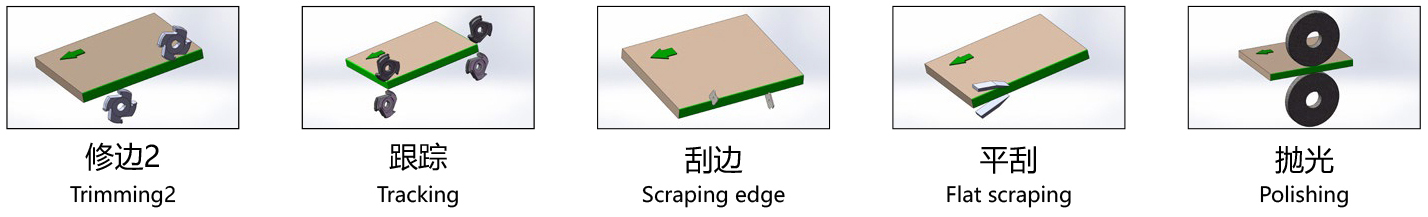

pre-milling - tape press - end-cutting - edge trimming - corner rounding - scraping - flat scraping - pneumatic polishing - touch screen
