Model | MH1325/4(-2F) | MH1362/4(-2F) | |
Max.working length | 2700mm | 6200mm | |
Max.working width | 1300mm | 1300mm | |
Working thickness | 10-150mm | 10-150mm | |
Top cylinder dia. | 80 | 80 | |
Top cylinder amounts of each side | 6-8 | 12/15/18 | |
Side cylinder dia. | 40 | 40 | |
Side cylinder amounts of each side | 6-8 | 12/15/18 | |
Lift cylinder dia. | 63 | 63 | |
Lift cylinder amouts of each side | 2 | 2 | |
Motor power for hydraulic system | 5.5kw | 5.5kw | |
Rated pressure of system | 16mpa | 16mpa | |
Motor power for pressure-supplement | 1.5kw | 1.5kw | |
Motor power for rotary | 3kw | 3kw | |
Overall dimensions | L | 4700mm | 8200mm |
W | 2970mm | 2970mm | |
H | 3050mm | 3050mm | |
Weight | 6300-7000kg | 14000-15000kg |
Advantage:
It is suitable for lateral or frontal press of wood and processing of variable laminated wood, small sized plate and square-edged timber for high output.
Safety device: Lateral pressure door can not open, once the safety device isn't closed, in case to avoid the frame deformation caused by wrong operation. It is featured by stable movement, large pressure and uniform pressing by adopting the hydraulic principle, and can prevent reverse warping by exerting pressure above or in front of workpiece, making gluing of laminated timber flat and perfect.
A pressure maintaining or supplementing mechanism in the hydraulic system provides continuous gluing pressure and is good for improvement of quality.
Presser feet in the front can move left and right entirely according to specifications of workpieces.

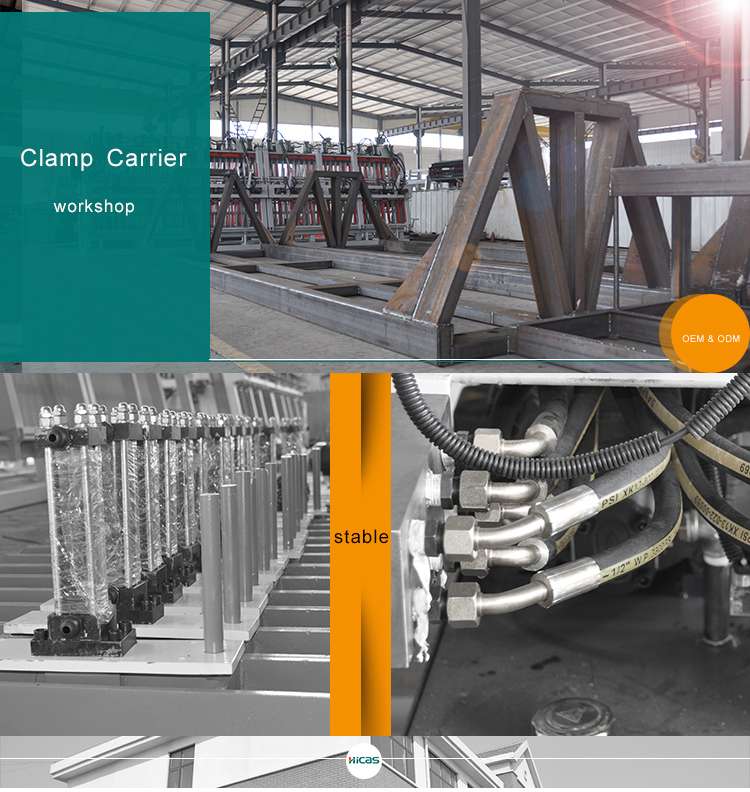

Ashaped clamp carrier has two working faces, each of which can operate independently, enjoying high efficiency and safe and reliable operation. This machine adopts hydraulic principals characterized by a stable motion speed,huge
pressure and still pressing.High density braced sheeting as back worktop and pressure from the above and front can prevent the curved angle and make the board glued
completely.Low sanding and high output.
According to different working specifications(length or thickness),system pressure can be adjusted according to different pressure required.And there is pressure-supplement system,which ensure the continuous pressure.

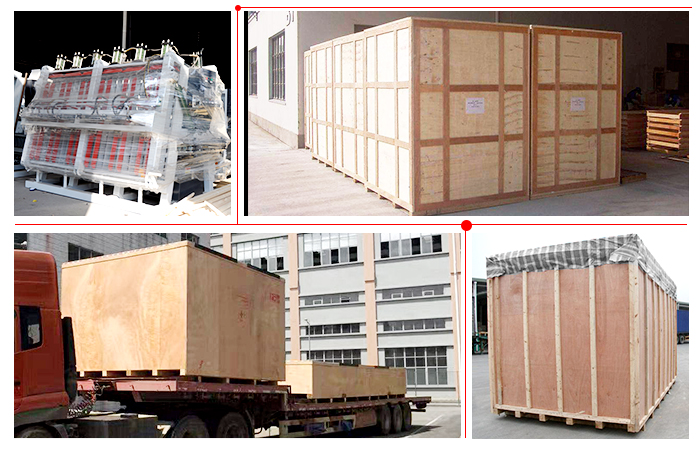

Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
