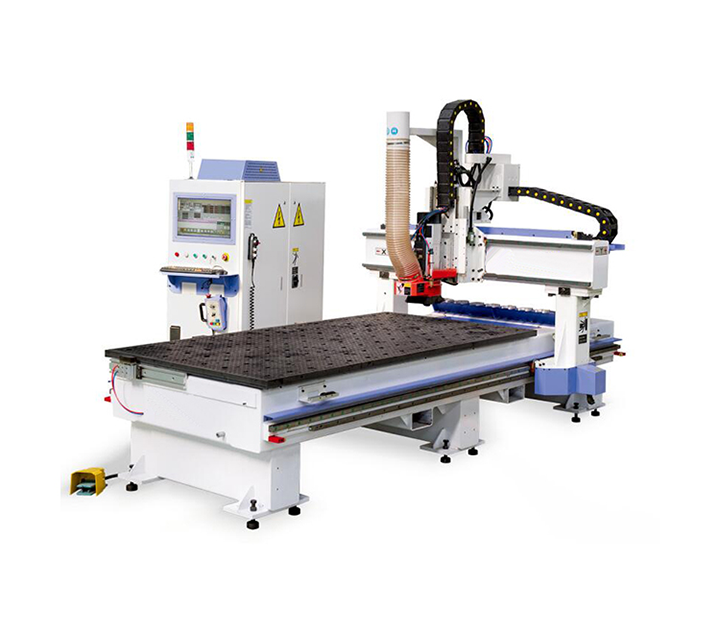

| Model | HC-481 |
| X-Y-Z axis working area | 1,300 x 2,500 x 200mm |
| Resolutions | 0.0025mm |
| X - Y movement | rack and pinion, gear drive/Taiwan |
| Z movement | ball screw drive/Germany |
| Guide | Linear ￠30 square/Taiwan |
| Max. speed | 60,000mm/min |
| Max. cutting speed | 35,000mm/min |
| Spindle power | 9kw(air cooling)/Italy （ISO 30） |
| Spindle speed | 24,000rpm |
| Inverter power | 11kw |
| Tool storeroom type | Circular,8 pieces |
| Drive motors | Servo/Japan |
| Working voltage | AC380V/50-60Hz, 3-phase |
| Command code | G code |
| Collet | ER32-12.7mm,6mm,3.175mm |
| Software | Type3 Software/France |
| Controls | Taiwan Syntec |
| Machine Weight | 4100kgs |
| Equipments included | a.Vacuum hold down,5.5kw air cooling |
| b.Automatic oil lubrication system |
Product character:
By delicate leakage material design structure,it effectively improving the block and rails life under
In extremely harsh environment .
With steel tube structure design,the machine is best choice for cutting and routing in high speed and precision .
Is suitable for all kinds of materials processing , like solid wood furniture,solid wooden door ,cabinet board...
Advantage:
1. Applicable industries: wood processing, cutting and carving on any kind of Making furniture, such as door, window, cabinet, craft wooden door, chairs and so on.Advertisement: engraving and cutting various design on PVC, acrlic and soft metal.Art craft: engraving characters or design of any languages and graphics for making Gifts and souvenirs.
2. Applicable material: wood, aluminum board, plastic, density board, wave board,Wave board, PVC, acrylic, crystal, light marble and other non-metal materials and Light metal materials.
3. Processing effect: any kind of engraving, cutting, milling, drilling, ect…..
Original imported HSD spindle, made in Italy. ATC can be option, improving work fficiency.
With stable, reliable and heavy duty machine structure, it is suitable choice for long, wide and thick material cutting and processing.
With X, Y, Z axis full with ball screw drive and moving working table. To guarantee high-precision processing.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping：
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1. This is the first time I use this kind of machine,is it easy to operate ?
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2. If machine has any problem after i ordered it, how could I do ?
Free parts send to you in machine warrantly period if machine have any Problem.Free after-sales service life for machine, please feel free contact us if Your machine have any problem. We will give you 24 hours service from Phone and skype.
3. MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port Or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.
 |  |
