1325 Cnc Router
Fully automated CNC milling machines set the standards in the production of complex workpieces. Because of their flexibility, precision and speed, machining centres are indispensable in the series production sector.
| Model | 1325 |
| X-Y-Z axis working area | 1,300 x 2,550 x 200mm |
| Machine size | 2,150 x 3,200mm |
| Resolutions | 0.0025mm |
| X-Y movement | Rack and pinion, gear drive/Taiwan |
| Z movement | Ball screw drive/Germany |
| Guide | Linear ￠30 square/Taiwan |
| Max. speed | 35,000mm/min |
| Max. cutting speed | 25,000mm/min |
| Spindle power | 6kw |
| Spindle speed | 18,000rpm |
| Inverter power | 11kw |
| Drive motors | stepper |
| Working voltage | AC380V/50-60Hz, 3-phase |
| Command code | G code |
| Computer interface | USB 2.0 |
| Collet | ER32-12.7mm,6mm,3.175mm |
| Software | Ucancam |
| Controls | DSP A11 (Digital Signal Processor) |
| Packing dimensions | 3320*2220*1920mm,2200kgs |
| Equipment available | a.Vacuum hold down |
| b.Auto cut adjusting device | |
| c.Oil lubrication system | |
| d.Clamps and vacuum fitting |
Advantage:
1. Applicable industries: wood processing, cutting and carving on any kind of Making furniture, such as door, window, cabinet, craft wooden door, chairs and so on.Advertisement: engraving and cutting various design on PVC, acrlic and soft metal.Art craft: engraving characters or design of any languages and graphics for makingGifts and souvenirs.
2. Applicable material: wood, aluminum board, plastic, density board, wave board,Wave board, PVC, acrylic, crystal, light marble and other non-metal materials and Light metal materials.
3. Processing effect: any kind of engraving, cutting, milling, drilling, ect…..

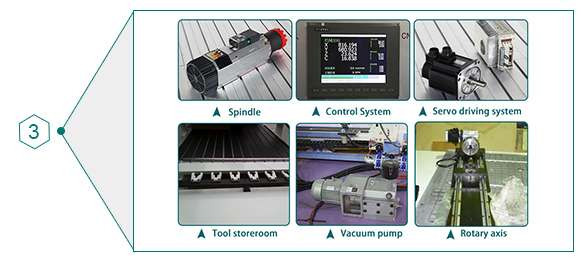

Original imported HSD spindle, made in Italy. ATC can be option, improving work fficiency.
With stable, reliable and heavy duty machine structure, it is suitable choice for long, wide and thick material cutting and processing.
With X, Y, Z axis full with ball screw drive and moving working table. To guarantee high-precision processing.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping：
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1. This is the first time I use this kind of machine,is it easy to operate ?
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2. If machine has any problem after i ordered it, how could I do ?
Free parts send to you in machine warrantly period if machine have any Problem.
Free after-sales service life for machine, please feel free contact us if Your machine have any problem. We will give you 24 hours service from Phone and skype.
3. MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port Or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.
4.How long does your factory's Cnc machine for sale have?
We have a one-year cnc router sales experience, and our industry experience helps us and our customers have a great role
 |  |
If you have any requirement or question, please fill out the form below that we will reply you within 24 hours.
