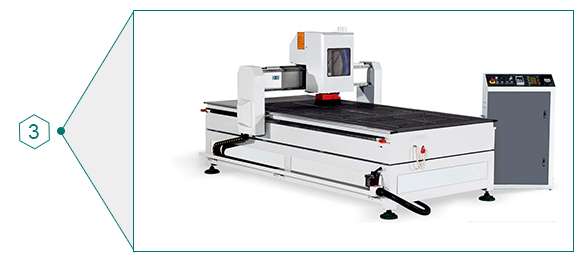

Cnc Wood Router Machine-HC-45MT

ModelK1325
X-Y-Z axis working area1,300 x 2,550 x 200mm
Machine size2,150 x 3,150mm
Resolutions0.0025mm
X-Y movementRack and pinion, gear drive/Taiwan
Z movementBall screw drive/Germany
GuideLinear ¢20 square/Taiwan
Max. speed35,000mm/min
Max. cutting speed25,000mm/min
Spindle6kw(air cooling)
Spindle speed18,000rpm
Inverter power11kw   Fuling

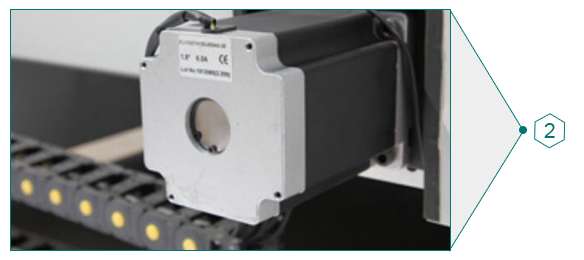

Drive motorsstepper
Working voltageAC380V/50-60Hz, 3-phase
Command codeG code
Computer interfaceUSB 2.2
ColletER32-12.7mm,12mm,8mm,6mm,4mm,3mm
SoftwareType3 Software Router 8 /France

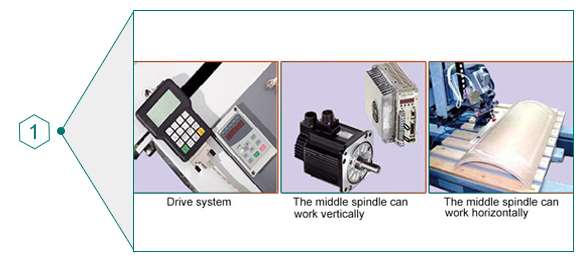

ControlsDSP A11 (Digital Signal Processor)
Packing dimensions2260 x 3250 x 1960 mm,1350 kgs
Equipment includedA. Oil lubrication system
B. Auto adjusting device
C.Clamps without vacuum system
D.Two Bags Dust Collector

Cnc Wood Router Machine

Advantage:

1. Applicable industries: wood processing, cutting and carving on any kind of Making furniture, such as door, window, cabinet, craft wooden door, chairs and so on.Advertisement: engraving and cutting various design on PVC, acrlic and soft metal.Art craft: engraving characters or design of any languages and graphics for makingGifts and souvenirs.

2. Applicable material: wood, aluminum board, plastic, density board, wave board,Wave board, PVC, acrylic, crystal, light marble and other non-metal materials and Light metal materials.

3. Processing effect: any kind of engraving, cutting, milling, drilling, ect…..


Original imported HSD spindle, made in Italy. ATC can be option, improving work fficiency.

With stable, reliable and heavy duty machine structure, it is suitable choice for long, wide and thick material cutting and processing.

With X, Y, Z axis full with ball screw drive and moving working table. To guarantee high-precision processing.

Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.

1. This is the first time I use this kind of machine,is it easy to operate ?

There are English manual or guide video that show how to use machine.

If there is still have any question, we can talk from phone or skype.



2. If machine has any problem after i ordered it, how could I do ?

Free parts send to you in machine warrantly period if machine have any

Problem.

Free after-sales service life for machine, please feel free contact us if

Your machine have any problem. We will give you 24 hours service from

Phone and skype.



3. MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port

Or your factory directly, please tell us your port name or your detailed

address. There will be best shipping freight and machine price send to you.
