| Technical parameters | Finger jointer | Finger shaper | Finger shaper | Belt conveyor |
| MXB3518A-B | MXB3518C-B | RL-520A2 | ||
| Max working length | 2500mm/5000mm | 150mm-900mm | 150mm-900mm | 900mm |
| 6000mm | ||||
| Effective working width | 30mm-150mm | 590mm | 590mm | 590mm |
| Effective working length | 12mm-70mm | 18mm-150mm | 18mm-150mm | 18mm-150mm |
| Cutting saw rotary | 2840r/min | 4150rpm | 4150rpm | |
| Fret saw motor rotary speed | 2840rpm | 2840rpm | ||
| Shaper spindle diameter | ø50mm | ø50mm | ||
| Shaper spindle rotary speed | 6750rpm | 6750rpm | ||
| Shaper motor power | 11kw | 11kw | ||
| Cutting saw motor | 2.2kw | 4kw | 4kw | |
| Fret saw motor | 0.75kw | 0.75kw x 2pcs | ||
| Feeding motor power | 0.55kw | 0.55kw x 2pcs | 0.55kw x 1pcs | |
| Oil station motor power | 4kw | 2.2kw | 2.2kw | |
| Woring speed | 70m/min | |||
| Working air pressure | 0.8Mpa | |||
| Max oil pressure | 130kgs/c ㎡ | |||
| Oil pump motor power | 4kw | |||
| Frequency Motor | 1.1kw | 1.1kw | ||
| Machine dimension | 4600x1100x1600mm | 2800x1650x1450mm | 3300x1900x1450mm | 900x900x980mm |

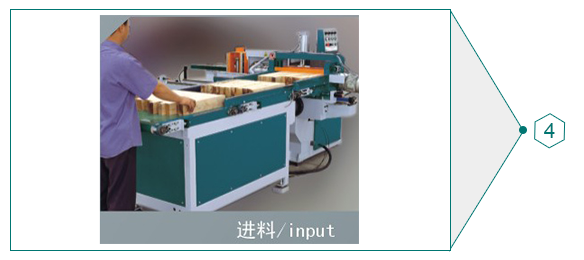

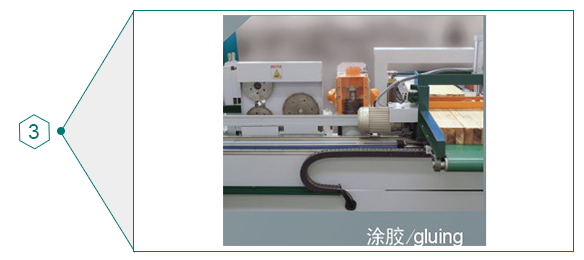

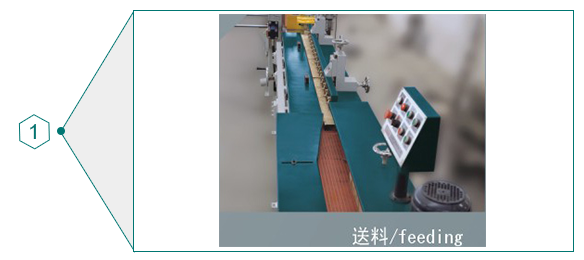

finger joint machine line |
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping：
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
