Model | M521 | M523 | M533 |
Working width | 25-210mm | 25-230mm | 25-330mm |
Working thickness | 8-140mm | 8-160mm | 8-230mm |
Working table length | 1800mm | 1970mm | 1970mm |
Feeding speed | 7-28m/min | 7-28m/min | 7-28m/min |
Main spindle dia. | 40mm | 40mm | 40mm |
Main spindle speed | 6000r/min | 6000r/min | 6000r/min |
Air pressure | 0.6MPa | 0.6MPa | 0.6MPa |
1st lower shaft | 5.5kw/125mm | 7.5kw/125mm | 15kw/125mm |
1st upper shaft | 7.5kw/125-180mm | 11kw/125-180mm | 15kw/125-180mm |
Right vertical shaft | 5.5kw/125-180mm | 7.5kw/125-180mm | 11kw/125-180mm |
Left vertical shaft | 5.5kw/125-180mm | 7.5kw/125-180mm | 11kw/125-180mm |
Second lower shaft | 5.5kw/125-180mm | 7.5kw/125-180mm | 15kw/125-180mm |
Second upper shaft | 5.5kw/125-180mm | 7.5kw/125-180mm | 15kw/125-180mm |
Beam lifting motor | 0.75kw | 0.75kw | 0.75kw |
Feeding motor | 4kw | 5.5kw | 7.5kw |
Total motor | 39.75kw | 55.1kw | 90.25kw |
Feeding wheel dis. | 140mm | 140mm | 140mm |
Dust outlet dia. | 140mm | 140mm | 140mm |
Overall size | 3961*1462*1776mm | 4073*1565*1920mm | 4560*1725*1990mm |
Net weight | 3150kg | 3500kg | 4600kg |
Advantage:
>.Step less feeding system,speed ranges from 7-28m/min.
>.Independent motor drive each main spindle and makes stronger cutter force.
>.One concentrate adjustment control panel in front of machine to make operate easy.
>.Hand chromed working table with perfect performance of wear resistance..
>.Bottom driving roller on the working table makes feeding easy.
>.Fit on quality brand electrical element with stability performance.
>.With full protection safety hood to avoid saw dust flying and noise,and offer safety protection of operator.
>.Air cylinder controlled hold down feed rollers,to be adjusted subsections and make for unblock feeding when processing wood pieces with different thickness.
>.With short feeding device to promote performance of unblock feeding of short pieces.
Each movement of universal spindle is controlled by electric reduce the laboring
Exquisite production technology with orderly inside.

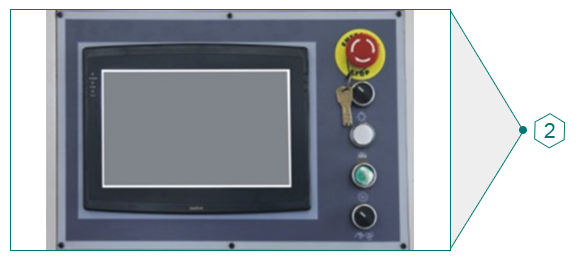

Interface+plc system, with accurately control to top spindle(height) and left spindle(width).
The pressing wheel mechanism for short materials,ensuring the smooth conveying of the short materials.

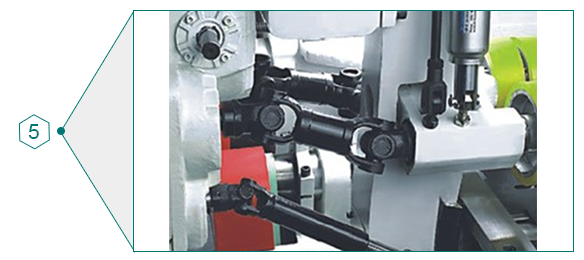

The universal chainless transmission for feeding materialsis precise,strong,long life,no need for maintenance for years.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
