Basic parameter | Name | Automatic double hole steel strip production line |
Power | Max Input power | 12kw |
Productivity | Speed | 4m /min |
Raw material | Steel strip SGCC | 50*0.4mm |
Working thickness | Plywood thickness | 5-7mm |
Productivity | Speed | 2 workers, can make foldable box height less than 1000mm 200pc per 8 hours |
Control system | PLC | Siemens PLC with high speed terminals S7-200 224 module |
Display | Siemens 5.7" touch screen | |
Sensor *4pc | IFM24V 1- 4mm | |
Electrical system | Electrical parts | Schneider-electric |
Dynamical system | Servo-motor | Veichi 0.75kw + 0.4kw |
Reducer | Taiwan Kimpo | |
Hydraulic system | Hydraulic parts | Made in China |
Feeder | Automatic Rack | Saifan auto feeder |
Gross weight / kg | 1200 | |
Gross volume | (L*W*H)/mm | 2500*1500*1700 |
Advantage:
This machine is used for making double hole steel strip and connecting two plywood boards.
The advantages of this machine:
1) Save the labor cost, this a full automatic production line.
2) More higher precision compared with traditional press machine.
3) No waste of steel strip.

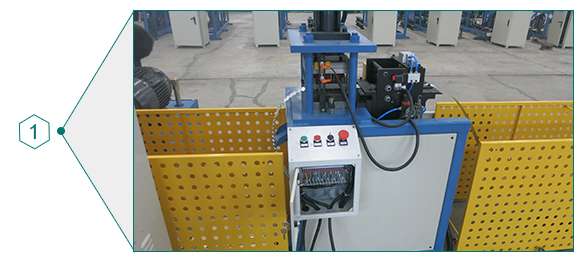

This mold is for make double hole steel strip, is can controlled by independent switch.

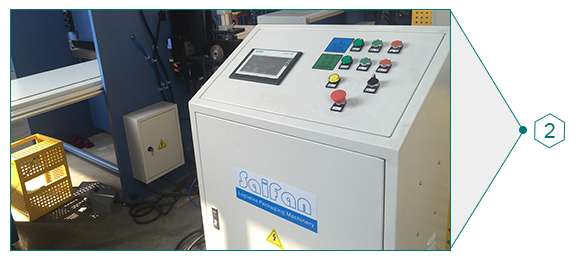

Worker just need enter the quantity and dimension of box, the machine working as required, it’s convenient.

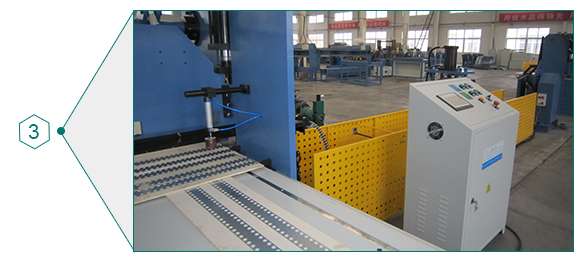

To connect two plywood boards on this place, the function of it same as pressing machine, but higher precision.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1) If I want to start make no-nail plywood box, what machine I need?
We have many models machine for your option, so we need to know your request, then offer your suitable machine. As usual, you need steel strip machine, buckles machine, double holes machine and press machine ect.
2) How much support we can get for problems ?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What’s your warranty?
The warranty of machine is one year, but no warranty for parts, like molds, so we usually suggest our customer buying spare parts.
5) How many workers needed for making no-nail plywood box machine?
A regular production line requires 5 to 7 worker.
6) What’s the different between SF301 and SF302
SF301 just produce double hole steel strip machine, but SF302 with a pressing machine, can connect two plywood panel by this machine.
