Double hole steel strip machine
Double hole steel strip machine making double hole steel strip, for connect two plywood.
Basic parameter | Name | SF301-Double hole steel strip machine |
Power | Max Input power | 3kw |
Productivity | Speed | 4m /min |
Raw material | Steel strip SGCC | 50*0.4mm |
Working thickness | Plywood thickness | 5-7mm |
Control system | PLC | Siemens PLC with high speed terminals S7-200 224 module |
Display | Siemens 5.7" touch screen | |
Sensor *4pc | IFM24V 1- 4mm | |
Electrical system | Electrical parts | Schneider-electric |
Dynamical system | Servo-motor | Veichi 0.4kw |
Hydraulic system | Hydraulic parts | Made in China |
Feeder | Automatic Rack | Saifan auto feeder |
Gross weight / kg | 460 | |
Gross volume | (L*W*H)/mm | 953*810*1410 |
Advantage:
This machine producing steel strips for plywood box, for connecting two boards.
The advantages as below:
1)The operator quantity has been decreased by 50% and the efficiency increased by 100%, which greatly enhance the efficiency.
2) Safe and reliable.
3) It can connect some waste plywood, save the cost.

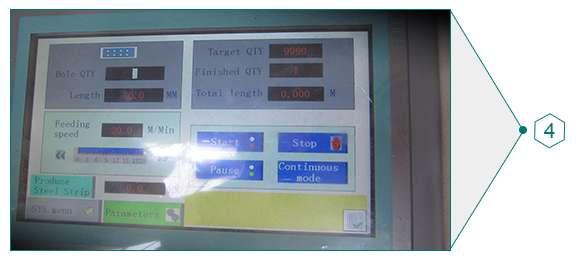

worker just need enter the box dimension, then double hole steel strip will be made as required. It’s save time and convenient.
Tidy and neat wire in control cabinet, looks reliable an safety.
Most of our spare parts are foreign brands, durable and in good quality.

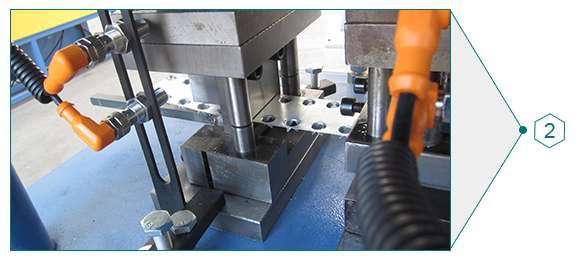

This machine has two molds, one is for making double hole, another one is for cutting steel strip.

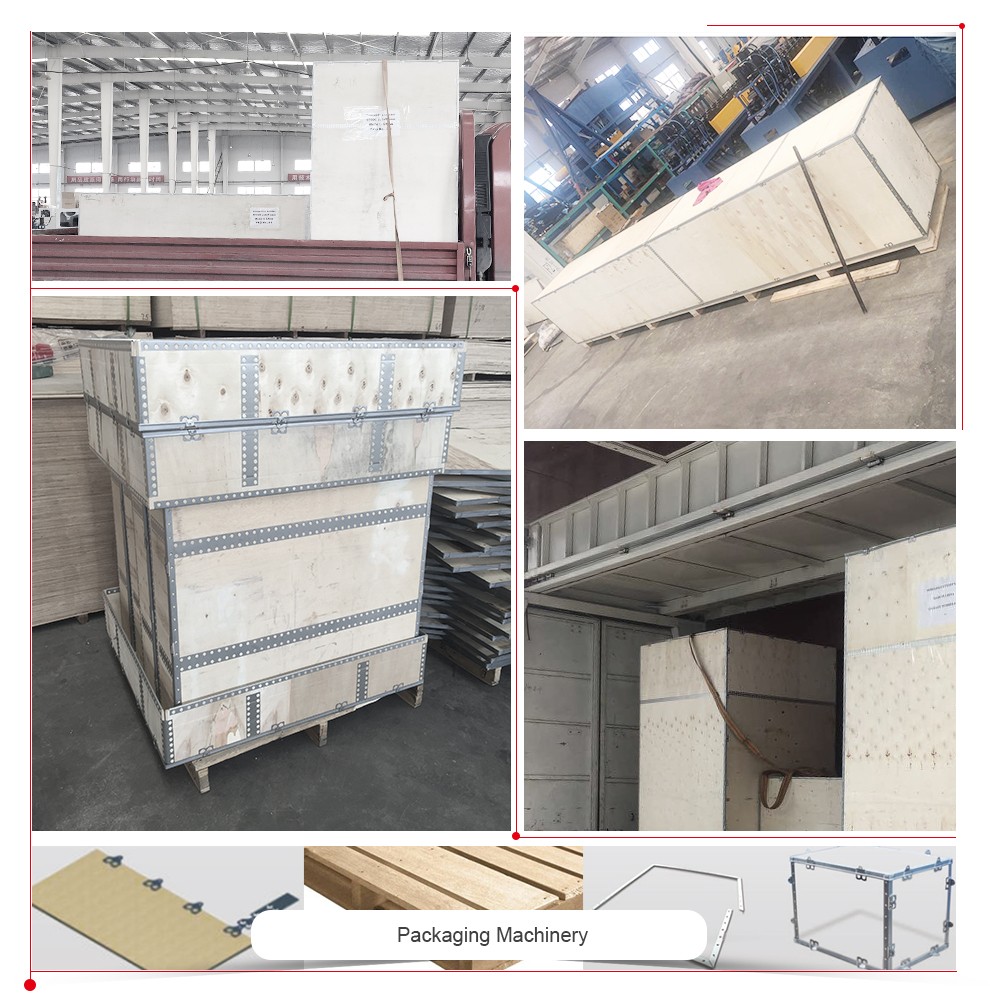

Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1) If I want to start make no-nail plywood box, what machine I need?
We have many models machine for your option, so we need to know your request, then offer your suitable machine. As usual, you need steel strip machine, buckles machine, double holes machine and press machine ect.
2) How much support we can get for problems ?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What’s your warranty?
The warranty of machine is one year, but no warranty for parts, like molds, so we usually suggest our customer buying spare parts.
5) How many workers needed for making no-nail plywood box machine?
A regular production line requires 5 to 7 worker.
