Basic parameter | Name | SF1103 professional Single steel strip machine |
Power | Max Input power | 6kw |
Productivity | Speed | 4-5 m/min |
Teeth hole mold | Teeth length choose one | |
10mm (Plywood thickness 5-11mm) | ||
12mm ( Plywood thickness 6-13mm) | ||
Most popular in market is 6mm 9mm | ||
Raw material | Steel strip SGCC | 42*0.7mm |
Control system | PLC | Siemens PLC S7-200, CPU224+223 extension Grantech industrial control computer, 14 types steel strip machining line control softwares. |
Display | Acer 166HQL | |
Sensor *10pc | Germany IFM 24V 1- 4mm,Sweden ELCO Rotary encoder EB50B8-P6QA-500 | |
Electrical system | Electrical parts | Schneider-electric |
Dynamical system | Servo-motor | Veichi 1.0 kw |
Reducer | BKM063/30 | |
Hydraulic system | Hydraulic parts | Made in China |
Forming wheel | - | 10 sets |
Feeder | Automatic Rack | Saifan auto feeder |
Gross weight / kg | 1650 | |
Gross volume | (L*W*H)/mm | 3400*800*1200 |
Advantage:
This machine is used for forming steel strip on no nail plywood box, the worker just need to enter the quantity and dimension of box in computer, then the steel strip will be made aromatically. There is no need worker to watch machine when making steel strip, save the labor cost.
This machine is controlled by computer, worker just input the quantity and the dimension of box.
Tidy and neat wire in control cabinet, looks reliable an safety.

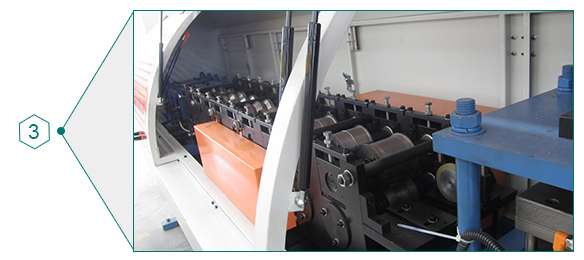

10 pcs forming wheel, it will forming steel strip in correct shape.

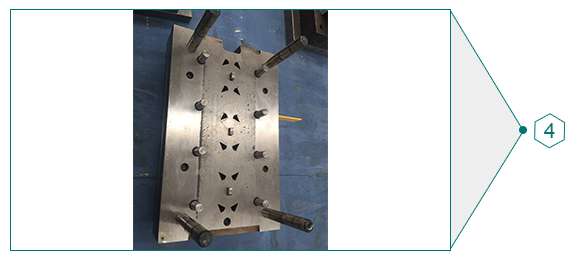

This machine has 5 molds, the function of them is different.

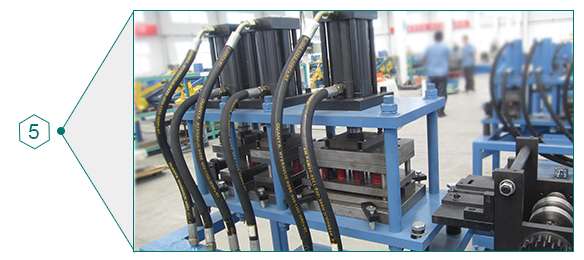

Each mold is controlled by cylinder.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1) If I want to start make no-nail plywood box, what machine I need?
We have many models machine for your option, so we need to know your request, then offer your suitable machine. As usual, you need steel strip machine, buckles machine, double holes machine and press machine ect.
2) How much support we can get for problems ?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What’s your warranty?
The warranty of machine is one year, but no warranty for parts, like molds, so we usually suggest our customer buying spare parts.
5) How many workers needed for making no-nail plywood box machine?
A regular production line requires 5 to 7 worker.
