steel buckles machine
This machine is used for producing the steel buckles, and press it into plywood. This machine is serve motor feeding, full automatic and working high efficiency.
Power | Max Input power | 6kw |
Productivity | Speed | Speed of panel feeding,15m /min |
32 buckle /min | ||
Raw material | Steel strip SGCC | 50*0.7mm |
Working thickness | Plywood thickness | 6-10mm |
Control system | PLC | Siemens PLC with high speed terminals ST30 module |

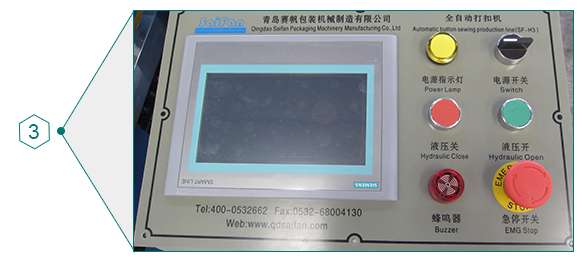

Display | Siemens 5.7" touch screen | |
Sensor *2pc | Sweden ELCO Rotary encoder 1- 4mm | |
Electrical system | Electrical parts | Schneider-electric |
Dynamical system | Servo-motor | Veichi 1.0 kw+0.4kw |
Reducer | Taiwan Kimpo | |
Hydraulic system | Hydraulic parts | Made in China |
Feeder | Automatic Rack | Saifan auto feeder |
Gross weight / kg | 920 | |
Gross volume | (L*W*H)/mm | 2750*1150*1500 |
Advantage:
This machine is used for producing the steel buckles, and press it into plywood. This machine is serve motor feeding, full automatic and working high efficiency.
All the switches are machine-independent, reliable and working stable.
Tidy and neat wire in control cabinet, looks reliable an safety.

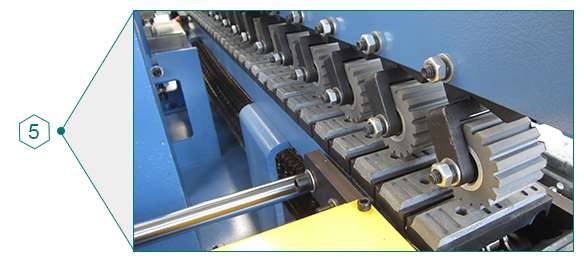

The plywood panel is moved by transfer roller.

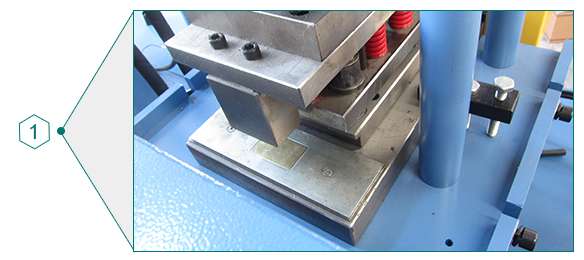

This mold is progressive die, it make the buckles and press it onto plywood panel aromatically.

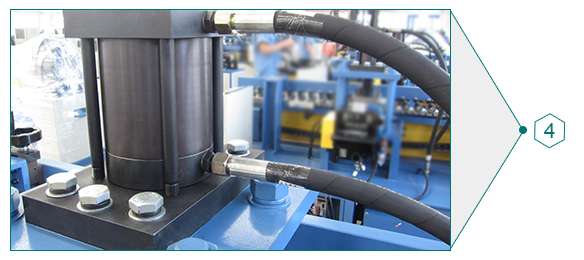

Buckle mold is controlled by cylinder.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1) If I want to start make no-nail plywood box, what machine I need?
We have many models machine for your option, so we need to know your request, then offer your suitable machine. As usual, you need steel strip machine, buckles machine, double holes machine and press machine ect.
2) How much support we can get for problems ?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What’s your warranty?
The warranty of machine is one year, but no warranty for parts, like molds, so we usually suggest our customer buying spare parts.
5) How many workers needed for making no-nail plywood box machine?
A regular production line requires 5 to 7 worker.
