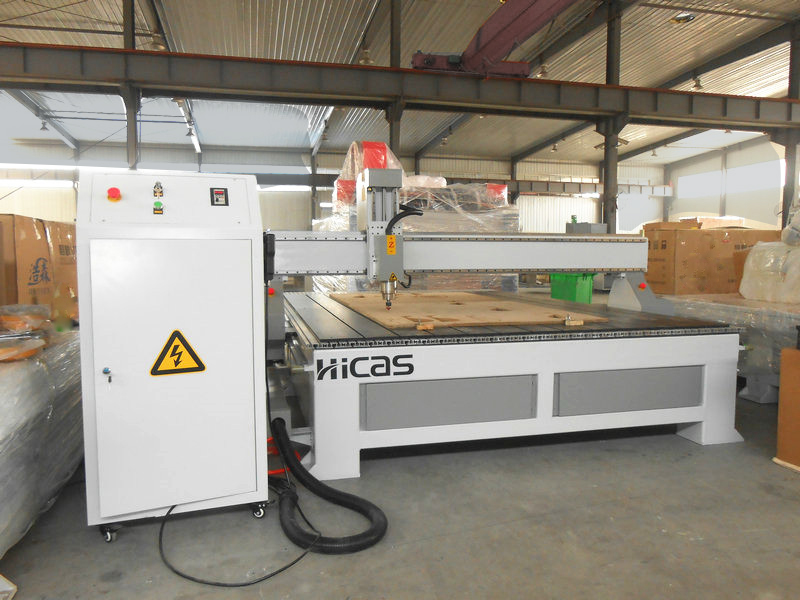

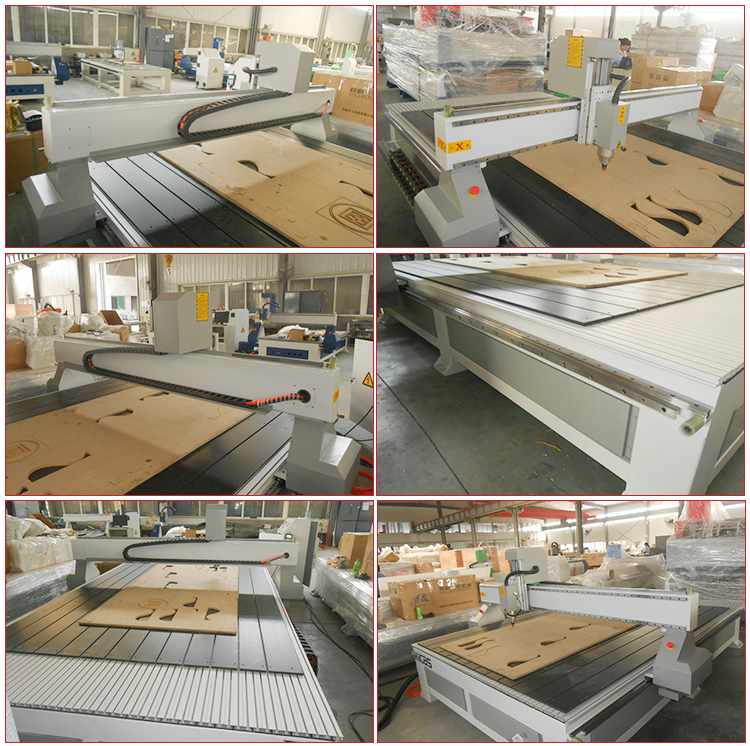

cnc router& cnc engraving

Name	Specification
Lathe Bed	Cast
X Y Z Guide Rail	Square Rail
X Y Z Transmission	Rack and Imported Ball Screw
Spindle Motor	3.0 KW
Inverter	4.0 KW
Control System	DSP(USB)
Typeset Software	ArtCAM
Motor	Stepper Motor
Driver	‍ LEADSHINE882
Lathe Table	‍‍ PVC
Working Travel(XYZ)	1300×2500×1900mm
G.W.	‍ 980KG
Cubage	11 CBM

cnc router

cnc engraving

One: When the woodworking engraving machine sets the origin, it often shifts forward or the proper and also the offset distance is uncertain.

the main reason:

1. The limit switch fails. If the system returns somewhere origin, the limit switch is closed and popped open. Affect the limit switch.

2. The drive lines are loose. Try to repair it tightly.

Two: The woodworking engraving machine gives an abnormal sound when it starts resetting or it has always a poor limit switch.

the reason why:

1, the top is just not limited by the limit switch, you are able to correct it.

2. The drive line is not in good contact as well as the drive line could be fixed.

3. The limit switch lines are not connected, along with the line could be connected.

4. The limit switch is damaged and could be replaced.

Three: Woodworking engraving machine cannot be carved at the origin.

the main reason:

1. If the layout size of the file matches the device.

2. Check if offset (OFFSET) is scheduled and also the layout is correct.

Three: The spindle motor suddenly stops or slows down during the work in the woodworking engraving machine.

the key reason why:

1. The operating voltage is unstable or overloaded, along with a voltage regulator might be added.

2. Check if the guts line is connected and perhaps the line is desoldered.
