Model | HC520 |
Max Working Width | 20-200mm |
Max Working Thickness | 8-125mm |
Min. Working Length | 250/630mm |
Feeding Speed | 8-33m/min |
Spindle Diameter | 40mm |
Bottom Spindle Speed | 6800r/min |
Cutter Diameter | |
1st Bottom Cutter | 125mm |
Left And Right Cutter | 108-200mm |
1st Upper Cutter | 108-180mm |
2nd Bottom Cutter | 108-200mm |
Machine Power | |
1st Bottom Spindle | 5.5kw |
Right Spindle | 5.5kw |
Left Spindle | 5.5kw |
1st Upper Spindle | 7.5kw |
2nd Bottom Spindle | 5.5kw |
Feeding Power | 4kw |
Lifting Power | 0.75kw |
Total Power | 34.25kw |
| Voltage | 380v 50hz 3phase |
Dust Collection Port | 120mm*5pc |
Machine Size | 3500*1780*1750mm |
Machine Weight | 3600KG |

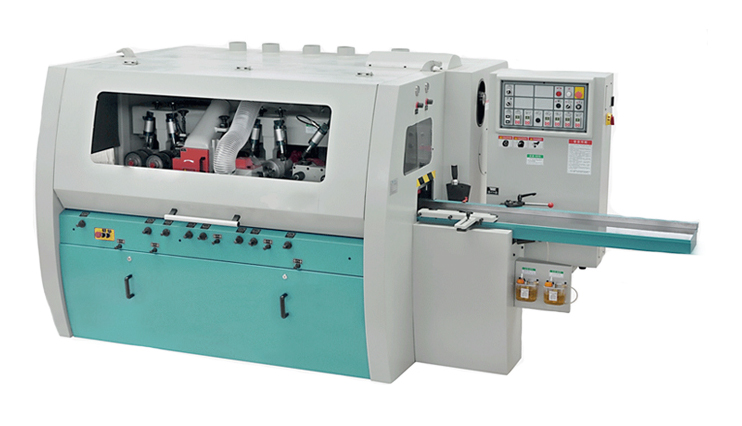

four side planer moulder |
