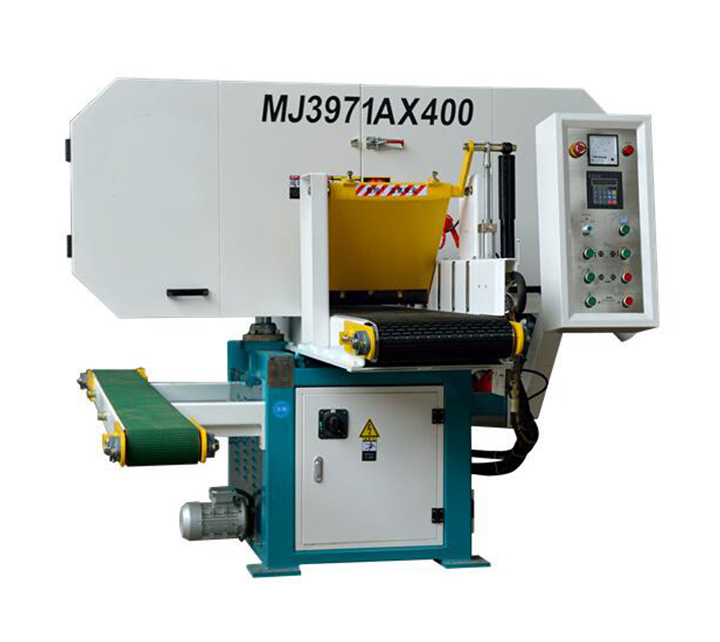

Model | HC3971A*300 | HC3971A*400 |
Max working size | 300*300mm | 400*300mm |
Distance from saw blade to worktable | 3-200mm | 3-200mm |
Width of conveyor belt | 285mm | 380mm |
Diameter of saw wheel | 711mm | 711mm |
Feeding speed | 0-18m/min | 0-18m/min |
Saw wheel elevation motor | 0.18kw | 0.18kw |
Saw wheel motor | 15kw | 18.5kw |
Hydraulic pressure | 55kg/cm² | 55kg/cm² |
Dust outlet diameter | 102mm*2 | 102mm*2 |
Size of saw blade | 4572*27*0.9mm | 4572*27*0.9mm |
Saw kerf | 1.2-2.2mm | 1.2-2.2mm |
Overall size | 3000*1950*1850mm | 3000*1950*1850mm |
Net weight | 1800KG | 1900KG |
Advantage:

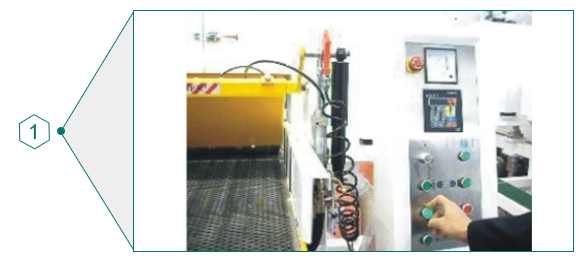

1. Human oriented micro computer operator interfaces, for easy and convenience operating.
2. Sawing width is controlled by the combine use of rotary high precise encoder and rigid ball screwod, to provide higher accuracy.

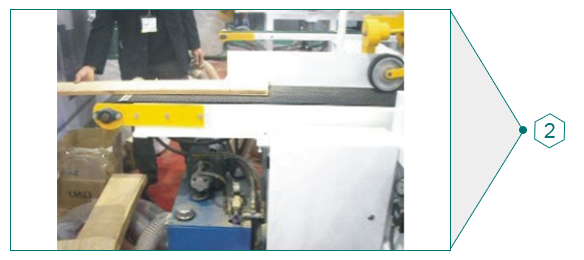

3. Use asisted reefed system, save time, save labor and free from worry.
4. PLC intergrated controlsystem, save and reliable.
5. Hydraulic saw blade tension auto-compensation system ensure the saw blade is always staying a bes tension status and provides a longer service life.
6. The conveyer belt is driven by hydraulic motor, which provides steady operation, constant and powerful driving force, so as to ensure the workpiece is smooth.
7. Thickness tolerance 0.1mm-0.2mm, no gap between interface.
8. All ready-to-ship machines inspected by overseas dept. staff indepedently with detail photo and video to customers. We are trying all the best to insure your worry-free on both purchasing and running of all our machines.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
