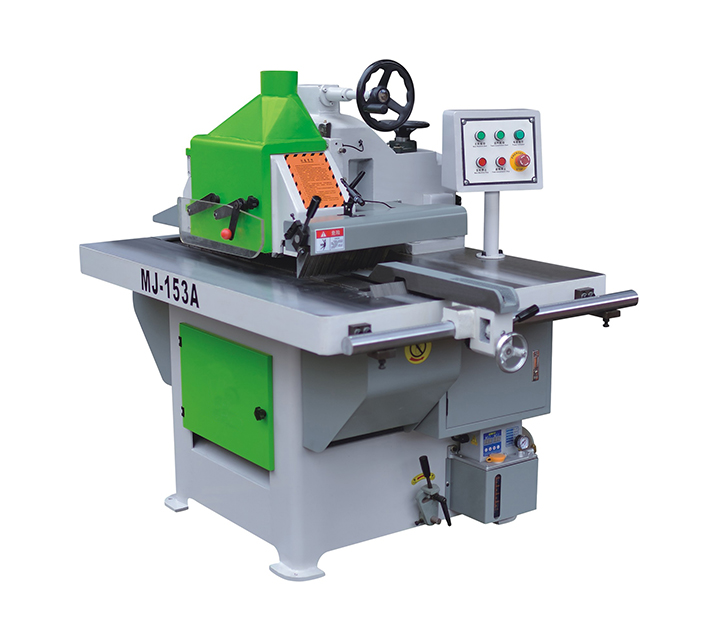

| Model | MJ153A |
| Saw blade diameter | 305mm |
| Max working thickness | 85mm |
| Sawing width | 360mm |
| Spindle speed | 3000r/min |
| Spindle diameter | 24.4mm |
| Speeding speed | 12-22m/min |
| Feeding motor power | 0.75kw |
| Main motor power | 7.5kw |
| Total power | 9kw |
| Worktable size | 1300*715mm |
| Overall size | 1500*950*1600mm |
Advantage:
Rip saw line cutting machine and edge trimming main features:
1.It's widely used to cut thin wood chips in high precision.
2.Whole cast iron machine frame keeps the working stable.
3.Top control panel with digital indicator, render the operation easy & ensure the working accuracy.
4.With sliding rip fence, so the users could manage and adjust the working width as the processing requirement.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping：
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1. Is this machine have laser line?
Yes, Standard machine include Infrared alignment device.
2. This machine can change different power volt?
Yes, Standard volt is 380V 3 phase 50HZ, if you need different power volt, we can customized special volt motor, but it is different price.
3. what’s the layout of the saw blade?
This type is single blade and the blade shaft is up the worktable.
 |  |
