Planer-sawing machine(sawing machine)

ModelHC9320HC9320C
Max working width200mm200mm
Max working thickness75mm75mm
Feeding speed4-18m/min4-18m/min
Top spindle diameter40mm40mm
Top spindle rotation rate6000r/min6000r/min
Top spindle movement20mm20mm
Top spindle power5.5kw5.5kw
Bottom spindle diameter40mm40mm
Bottom spindle rotation6000r/min6000r/min
Cutting spindle diameter50mm40mm
Spindle motor power22kw22kw
Spindle lifting motor0.37kw0.37kw
Feeding power2.2kw2.2kw
Elevating power0.37kw0.37kw
Total power34.44kw34.44kw
Air pressure0.6MPa0.6MPa
Dimension3070*1230*1540mm3070*1230*1540mm


Advantage:

Professional solution, large quantities of wood materials such as wood material specifications carriage, double sided planer multi chip sawing machine,

Saw shaft independent operation, Frequency conversion transmission,

Hard chromium plating on the work table, smooth and wear resistance.

Up and down saw shaft independent electrical lift ,operation ,quick,simple and convenient.


Anti-reture system,ensure the operator to be not damaged by returned wood chips.

layout

structure

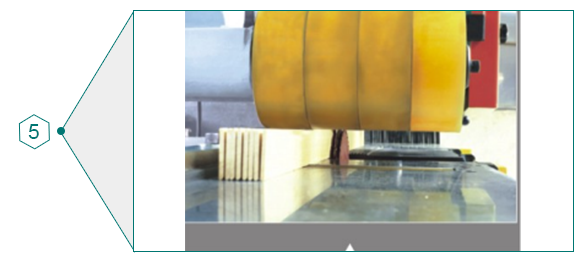

The foregoing press-plates can process short material

working table and rear pressure panel

1.This model include two functions, Is it can work much more faster?

Yes, two in one can do more faster.

2.How many blades does it can suitable?

It depends on your request, usually our customer can add 5-10 blades in one time.
