Main blade dimension | 350(400)mm |
Scoring blade dimension | 120*20mm |
Main blade speed | 3k/4k/5kRPM |
Scoring blade speed | 8500RPM |
Blade tilt | 45°-90° |
Max cutting height at 90° | 140mm(φ400mm) |
Max cutting height at 45° | 97mm(φ400mm) |
Sliding table dimension | 3200*400*210mm |
Main motor power | 5.5kw |
Scoring motor power | 1.1kw |
Blade lifting motor power | 0.12kw |
Weight | 930kg |
Advantage:

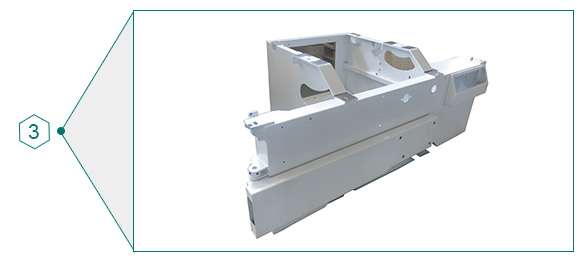

The frame is made of high quality raw materials and compact design. Four reinforcement points, strengthen part and balance part can guarantee the long-time cutting stability and precision.

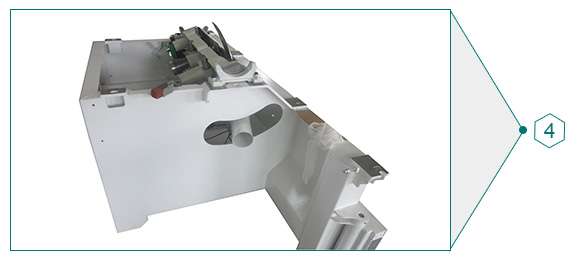

Working tables high-stability can guarantee the cutting precision, unique design can make the users easily change belt. And the size of workbench can be customized.
This part of precision casting, integrated processing.

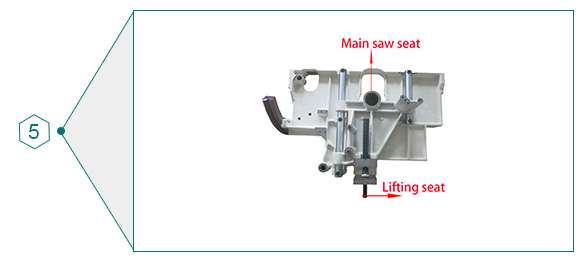

Expecially the integral processing of main saw seat and lifting seat can ensure the cutting precision.
Saw diameter:Max.400mm
Cutting height:60-140mm
Cutting precision:0.03-0.04mm

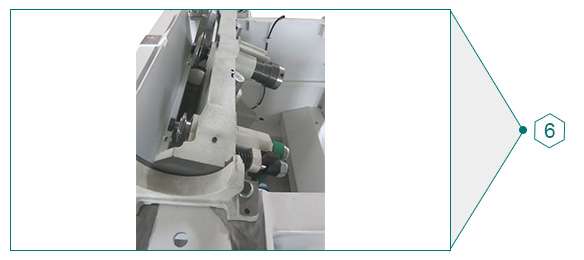

Lifting screw:its located in the center of the gravity.
Its directly driven by the motor, it can ensure the cutting accuracy and stability.
The 45°deflection using turbine structure.
The scoring saw can be lifted, so it can process solid wood and panel board.
High-power motor:Main saw motor5.5kw, scoring saw motor 1.1kw
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
