| Dimension of sliding table | 3200*370mm |
| Max. Cutting length | 2900mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Main sawblade diameter | 300mm |
| Height Of Cut | 75mm |
| Diameter Of Guide Shaft Spindle | 40mm |
| Height Of Cut With Saw Blade 300mm At 45° | 51.5mm |
| Spindle speed | 3600/6000r/min |
| Main Spindle Diameter | 30mm |
| Tilting Saw Blade | 0-45° |
| Main motor | 4KW |
| Scoring Saw Blade Diameter | 120mm |
| Speed Of Scoring Saw Blade | 8000r/min |
| Scoring Spindle Diameter | 20mm |
| Scoring Motor | 0.75KW |
| Net Weight | 600Kg |
| Overall Dimensions | 3250*3500*870mm |
Advantage:
1. Wide use
2. Extremely exact cut
3. Saw blades can be raised and lowered
4. Dust discharge device
5. Strict production process
6. Robust construction ensures long life serving
7. Worker protection system
8. Compact size with firm structure
9. For labor saving
10. Ergonomically designed to reduce operator's fatigue
11. Sealing wooden package
12. ISO9001 and CE certificate
13. Good after-sale service
14. Compact size with firm structure

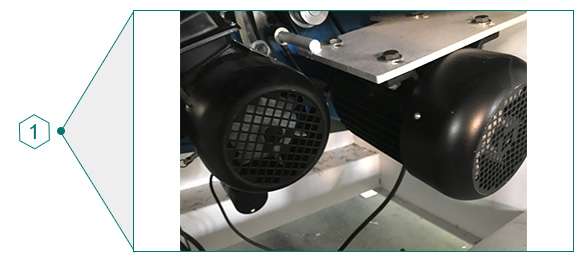

5.5KW copper motor, more power, can cut the wooden doors ，it will not be stuck, smooth and stable stability.
（1）ungsten Carbide tip （2）Saw body: High quality steel plate .

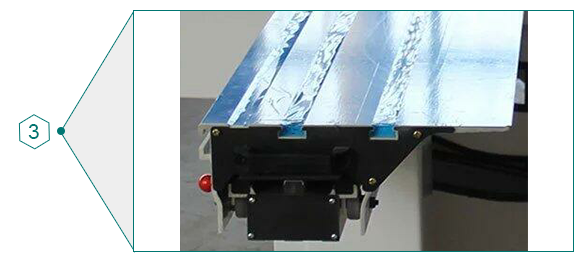

Sliding table for double thicker ,thicker than other manufactures one centimeter, higher precision, more stable.
https://www.youtube.com/embed/rXerb45738s
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping：
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
