sliding table saw HC-45YA

Dimension of sliding table3200*375mm
Max. Cutting length 3100mm
Width of cut between saw blade and rip fence1250mm
Main sawblade diameter300mm
Height Of Cut75mm
Diameter Of Guide Shaft Spindle40mm
Height Of Cut With Saw Blade 300mm At 45°51.5mm
Spindle speed4000/6000r/min
Main Spindle Diameter30mm
Tilting Saw Blade0-45°
Main motor5.5KW
Scoring Saw Blade Diameter120mm
Speed Of Scoring Saw Blade7200r/min
Scoring Spindle Diameter20mm
Scoring Motor0.75KW
Net Weight630Kg
Overall Dimensions3250*3500*870mm

Panel Saw

Advantage:

1.  Wide use

2. Extremely exact cut

3. Saw blades can be raised and lowered

4. Dust discharge device

5. Strict production process

6. Robust construction ensures long life serving

7. Worker protection system

8. Compact size with firm structure

9.  For labor saving

10. Ergonomically designed to reduce operator's fatigue

11. Sealing wooden package

12. ISO9001 and CE certificate

13. Good after-sale service

14. Compact size with firm structure

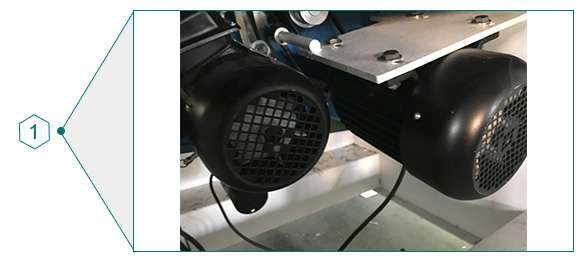

5.5KW copper motor, more power, can cut the wooden doors ,it will not be stuck, smooth and stable stability.

(1)ungsten Carbide tip  (2)Saw body: High quality steel plate .

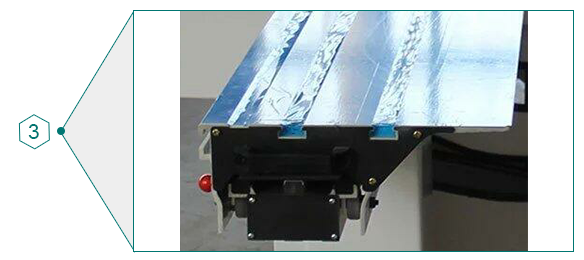

Sliding table for double thicker ,thicker than other manufactures one  centimeter, higher precision, more stable.

Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
