Pallet type | Stringer pallets |
Pallet width | 800-1500mm |
Pallet length | 800-1500mm |
Pallet height | 80-150mm |
Stringer height | 70-120mm |
Stringer width | 30-50mm, +/-3mm tolerance |
Foot & roof board thickness | 10-25mm |
Productivity | 850pc/8h shift (1*1m pallet) |
Nailing gun | 4pc MAX CN70 |
Coil nails | 3000 nails/coil, 45-70mm length, |
shank diameter 2.5-2.9mm, head diameter 5.7-7.2mm | |
Gantry servo motor | 1.5KW |
Hydraulic motor | 2.2KW |
Stack motor | 0.37KW*2 |
Discharging table power | 2.2kw |
Total power | 6.7KW |
Machine working power | Max. 4.5KW |
Voltage | 380v, 3 phase, 50 Hz. |
Air pressure | 7-8kg/cm2 |
Air tank volume | 0.3 cubic meters |
in machine | |
Extra Air tank volume | 2-3 cubic meters |
prepared by buyer | |
Air compressor required | Min. 2 cubic meters/min |
Electric components | Schneider brand |
Pneumatic components | Airtac brand |
PLC, touch screen | Siemens |
Machine dimension | 15m*2.5m*2.6m (L*W*H) |
Machine weight | 7000kg |
Advantage:
This machine is used for automatic assemble stringer (American pallets) wooden pallets. The advantages of machine is save labor cost, increase productivity of your standardized and massive production, rationalization management of human labor and wood material, safety production. Then the production capability of it is achieve 850pcs wood pallet, it’s very high efficiency.
Neat and tidy wires in control cabinet, it’s safe and reliable.

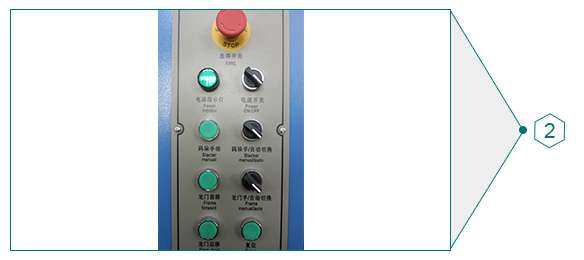

It can control the whole machine, all the switches are on the panel, it’s easy to operate.

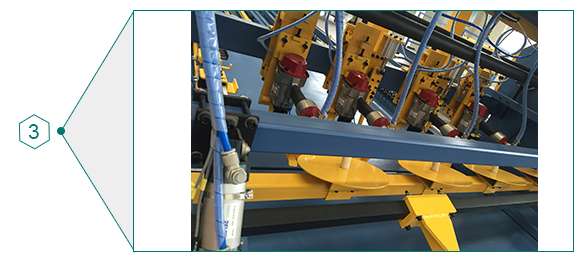

4 pcs nailing guns on gantry, it nail wood pallet automatically.
Stinger wood is feed by automatically, and pallet panel is feed by manual. Then nailing guns across through here, nailing pallet and turn over it.
Finished wood pallet will be stacked in here automatically,
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1) How quick we can get the parts from you?
As long as the problem with parts, we will send you free accessories by express, and you can get in 4~5 days.
2) How much support we can get for problems?
We will do our best to help you solve the problem by phone or video, also overseas services is available.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What’s kind of pallet this machine can nailing?
This machine is only for nailing stringer pallet, and our block wood pallet nailing machine is in development, will in market next year.
5) How many pieces of pallet this machine can make per day?
This machine can make 850 pcs (1m*1m) wood pallet per 8 shift hours, it’s a good option for large production factory.
6) If I purchase this machine, what service you can provide?
We can install the machine in you factory until you can operate well, but the cost of overseas service is caused on your side.
