Double end trimming saw

TypeSF6023 heavy duty double end trim saw
Cutting length450-1500mm
Cut off lengthLeft max. 70mm, right max. 50mm, total 120mm
Cutting thicknessMax. 120mm
Cutting widthMax. 200mm
Feeding speedFixed 20m/min
Saw blade diameterInside Ø30-outside Ø450-120T
Cutting toleranceLess than 1mm
Cutting motor4*2kw
Cutting motor rotation speed2830RPM
Feeding motor2.2kw
Total motor power12.2kw
Voltage380v, 3 phase, 50Hz.
Exhaust ductDia. 100mm*2pc
Machine packing dimension2920*2220*1750mm
Machine weight800kg

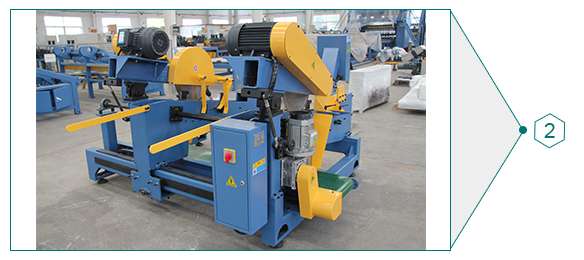

Double End Trimming Saw

Advantage:

This machine is cutting wood by double ends and automatic, it’s a favorable option for large pallet production.

The advantages of this machine as follows:

1) One person can control this machine, save the labor cost.

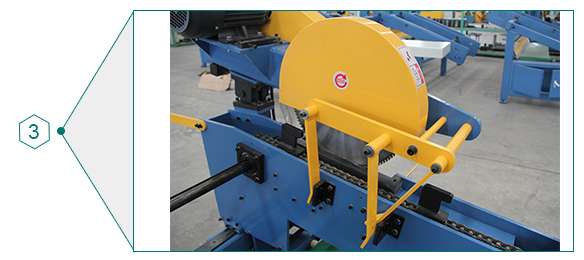

2) The saw blade in the safe guard, it is safe, also it’s easy operation.

3) High efficiency due the two saw blade cutting wood by double ends.



Sawing scrap with conveyor belt, it’s convenient.

It can control the whole machine, all the switches are on the panel, it’s easy to operate.

4 pcs nailing guns on gantry, it nail wood pallet automatically.

Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.

1) How quick we can get the parts from you?

As long as the problem with parts, we will send you free accessories by express, and you can get the parts in 4~5 days usually.

2) How much support we can get for problems?

We will do our best to help you solve the problem by phone or video, also we can do the overseas services.

3) Manuals and electrical for drawings can made in English?

Of course we can do that in English.

4) What’s your service time?

From 6:00 am to 12:00pm, this time is available.

5) Can you do the customize service?

Yes, it’s available. We can try our best to make the machine according to your request.
