Parameter | SF7011 single head | SF7012 double head |
Operator needed | 1 person | |
Power | Cutter motor 15kw | Cutter motor, 2*15kw=30kw |
Feeding motor, 0.75kw | ||
Width adjustment motor,0.75kw | ||
Total power, 31.5kw | ||
Voltage | 380V 3Phase 50Hz. Can customized, with extra cost $200 | |
Wood length | 800-1350mm | 800-1900mm |
Notching thickness | Max. 150mm | |
Notching depth | Max. 65mm adjustable | Max. 70mm adjustable |
Notching width | Max. 304.8mm adjustable | Max. 370mm adjustable |
Number of cutting blades | 2pc side +20pc middle | 2pc side +25pc middle |
Notching speed | 600pc/hour | 1200-1800pc/h |
Tolerance | ≤1mm | ≤1mm |
Net dimension L*W*H | 1350*980*1100mm | 2450*1600*1550mm |
Net Weight | 800kg | 1400kg |

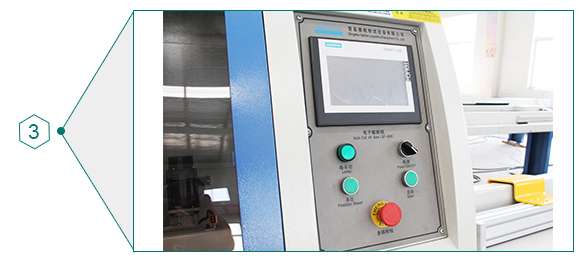

Control system | Siemens PLC | Siemens PLC |
Exhaust duct | 1pc diameter 160mm | 2pc diameter 160mm |
Cutter type | Indexable | |
Cutting arc | 25.4mm |
Advantage:
This machine is used for making make American stringer pallet, to make the notching on wood stringer, that is convenient for forklift to put into.
The advantage of this machine as follow:
1) Long service life, now our first sold nothing machine is 3 years ago, and there is no problem in using condition.
2) Indexable cutter, it’s more cost-effective than to replace the saw blade.
3) safety for operator, worker’s hands won’t access to cutting position.
4) Powerful motor to assure the wood notching is smooth.

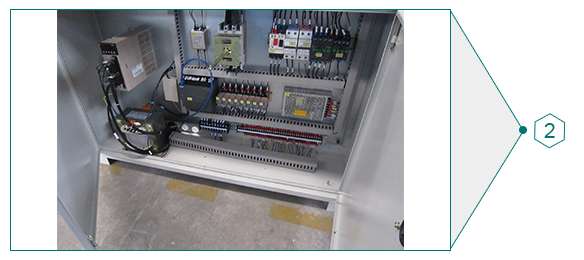

Tidy and neat wire in control cabinet, looks reliable and stable.
The cutter is indexable, it can assure longer life and better performance.
Airtac pneumatic cylinder.
Big power cutting motor, working high efficiency, and to assure wood notching surface is smooth.
High quality spare parts in our machine, it guarantee that our machine long life service.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1) How quick we can get the parts from you?
As long as the problem with parts, we will send you free accessories by express, and you can get the parts in 4~5 days usually.
2) How much support we can get for problems?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course, we can do that in English.
4) What's your warranty of this machine?
As usual, for machine is one year warranty, but no warranty for wearing parts.
5) You have two model notching machine, which one I should choose?
It's based on your request, SF7011 is single head, the production capacity is 600pc/hour, but for SF7012 double head is 1200-1800pc/h.
