Model | SF606 | SF6061 |
Cutting length | Max. 2m/ 4m/ 6m | |
Cutting height | 10-120mm | 10-140mm |
Cutting width | 30- 200mm | 30-300mm |
Cutting section | Max. 120*150mm/100*200mm | Max.140*140mm/140*300mm |
Feeding speed | 5-30m/min | |
Cutting speed | 40pcs/min | 45pcs/min |

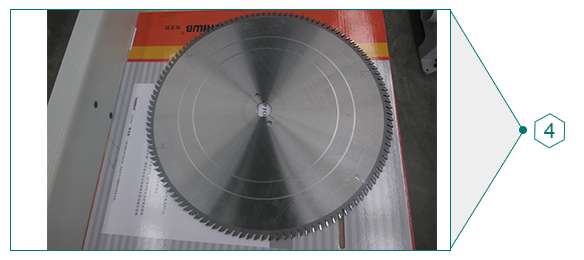

Blade diameter | 450mm*30mm | 600mm*30mm |
Cutter spindle rotation speed | 3000rpm | 3150rpm |
Servo drive motor power | 0.75kw | 1kw |
Cutting motor power | 7,5kw/11HP | 11kw/15HP |
Total power | 8.5kw | 12.5kw |
Pressing method | Cylinder, air pressure 0.5-0.7Mpa | |
Cutting tolerance | In +/-1mm | |
Machine working dimension | L*W*H, 5.4m*1.2m*1.6m/7.4m*1.2m*1.6m/9.4m*1.2m*1.6m | |
Dust collection port | Dia. 100mm*2pc | |

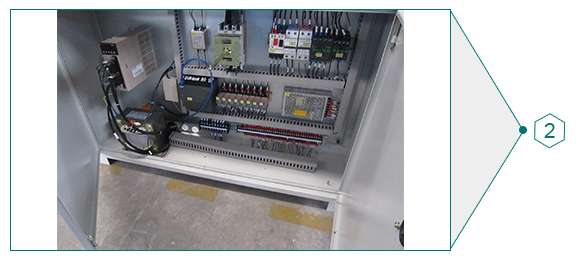

Electrical components | Schneider | |
PLC Touching screen | Siemens | |
Voltage | 380v, 3 phase, 50Hz |
Advantage:
Compared with traditional wood saw, our automatic cut off saw have many advantages as follows:

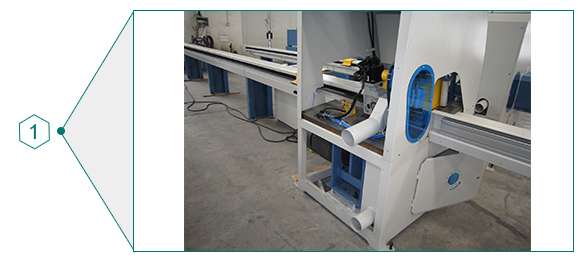

1) This machine is full automatic, automatic feeding, automatic output and Siemens PLC control system. One person can control this machine, it save the labor cost.
1) Cutting off size can combination freely, it maximize the use of wood, reduce waste.
2) Cutting part set in the cabinet, worker won’t access to saw blade, it’s safe.
3) Cutting dimensions can be inputted by touch screen, and can pre-set and edit and save.
Packaging :
1.Stretch film and plastic film for humidity.
2.Standard marine export plywood case.
3.Pallet packing.
Shipping:
1.We support maritime and land transport.
2.Shipped in 15-30 working days after payment.
1) How quick we can get the parts from you?
As long as the problem with parts, we will send you free accessories by express, and you can get the parts in 4~5 days usually.
2) How much support we can get for problems ?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What’s the cutting section of this saw?
This saw max cutting section is 140*280mm or 120*300mm (thickness*width).
5) How many workers needed for this machine?
Just need 1 worker, when wood material placed on working table, machine feeding the wood automatic, then just need worker take the finished wood.
